The spread of broadband speeds across the UK in Q3 2017

As every month passes faster broadband services varying from VDSL2 to full fibre are being rolled out across the UK and while no one minds if companies are spending their own money and no one is buying the faster services with the gap funded roll-outs and various voucher schemes that are using public money keeping an eye on the speeds across the UK is an important one. The Q3 analysis of speed tests for local authorities was published just after the end of Q3 on our statistics site but at that level a lot of the detail is lost and therefore we are publishing a summary for the average speeds per postcode area in Q3 2017.

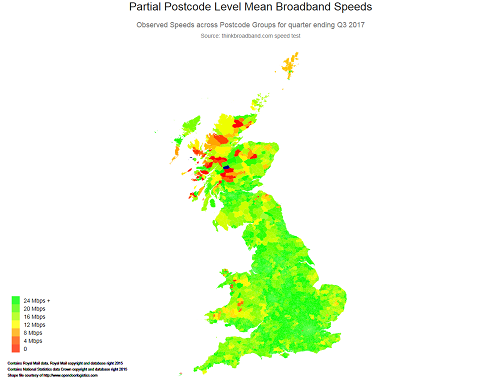

GB map of postcode level broadband speeds
Click image for larger version

Postcode Area Mean Download Speeds across Great Britain in Q3 2017
(Blue area signifies no data)

The map showing the average mean download speeds is a nice see of green and perhaps the scale should be adjusted, as otherwise people viewing the map will get the idea that all is well, but if one looks at the same dataset but plotted using the median download speed you can see a distinct difference and areas like Central London don't look as good. So is the mean map wrong? No, its just that those who have the option and are actually buying the fastest services available to them are skewing the mean.

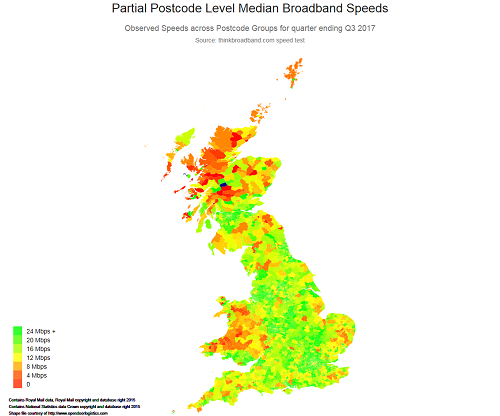

GB map of postcode level broadband speeds
Click image for larger version

Postcode Area Median Download Speeds across Great Britain in Q3 2017

The link between availability and average speeds is explored after we look at the fastest and slowest 30 postcode areas and with the upload speeds included the asymmetry of consumer broadband services is clearly illustrated.

Fastest 30 and slowest 30 postcode areas across the UK in Q3 2017 based on speed test results

(sorted by descending median download speed)

Postcode AreaDownload SpeedUpload Speed
 MedianMeanMedianMean
KT14 51.8 Mbps 55.6 Mbps 5.7 Mbps 6 Mbps
BT10 46.3 Mbps 55.6 Mbps 6 Mbps 7.2 Mbps
DN41 43.3 Mbps 39.6 Mbps 6.9 Mbps 9.5 Mbps
DE1 40.6 Mbps 45.7 Mbps 4.1 Mbps 7 Mbps
DN34 40 Mbps 55 Mbps 5.8 Mbps 6.8 Mbps
CA23 38.5 Mbps 34.6 Mbps 8.6 Mbps 7.7 Mbps
DN1 37.7 Mbps 50.3 Mbps 3.8 Mbps 5.5 Mbps
ML4 37.1 Mbps 45.7 Mbps 6 Mbps 8.1 Mbps
LS4 37 Mbps 35.5 Mbps 3 Mbps 3.9 Mbps
CB5 36.9 Mbps 46.5 Mbps 4.1 Mbps 5.5 Mbps
BN41 36.7 Mbps 37.9 Mbps 4.9 Mbps 6.9 Mbps
TS23 36.3 Mbps 42 Mbps 5.1 Mbps 5.3 Mbps
TF3 36.3 Mbps 43.2 Mbps 5.2 Mbps 8.3 Mbps
NE7 35.7 Mbps 43.2 Mbps 5.5 Mbps 6.6 Mbps
IG4 35.5 Mbps 43 Mbps 5.4 Mbps 6.4 Mbps
TF5 35.3 Mbps 42.3 Mbps 5.7 Mbps 6 Mbps
RM2 35.1 Mbps 42.4 Mbps 5.7 Mbps 13.2 Mbps
RG5 35.1 Mbps 53.3 Mbps 5.7 Mbps 6.5 Mbps
SM5 34.9 Mbps 41.5 Mbps 4.7 Mbps 5.4 Mbps
B16 34.8 Mbps 39.5 Mbps 5.3 Mbps 8.1 Mbps
CM18 34.7 Mbps 45.3 Mbps 5.1 Mbps 7.2 Mbps
TS16 34.6 Mbps 48.4 Mbps 4.7 Mbps 5.8 Mbps
TW14 34.4 Mbps 35 Mbps 5 Mbps 5.3 Mbps
BN42 34.3 Mbps 43.2 Mbps 5.7 Mbps 6.8 Mbps
RM5 34.3 Mbps 38.3 Mbps 5.3 Mbps 6.4 Mbps
LE11 34.2 Mbps 41.3 Mbps 4.9 Mbps 5.7 Mbps
WD5 34.2 Mbps 47.8 Mbps 5.3 Mbps 5.6 Mbps
PL3 34.2 Mbps 40.2 Mbps 4.6 Mbps 5.7 Mbps
SA2 34 Mbps 44.6 Mbps 5.1 Mbps 5.6 Mbps
L10 33.9 Mbps 45 Mbps 5.8 Mbps 6.5 Mbps
Skipping over 3,400 other areas to now showcase the slowest 30 areas
LA10 5.9 Mbps 15.1 Mbps 0.6 Mbps 10.9 Mbps
CA17 5.7 Mbps 15.9 Mbps 0.4 Mbps 2.9 Mbps
NG33 5.7 Mbps 17.4 Mbps 0.7 Mbps 4.4 Mbps
NR16 5.7 Mbps 14.4 Mbps 0.6 Mbps 2.6 Mbps
SA19 5.6 Mbps 11.1 Mbps 0.5 Mbps 2.7 Mbps
PO41 5.6 Mbps 10.5 Mbps 0.9 Mbps 2.5 Mbps
SY18 5.5 Mbps 11.1 Mbps 0.5 Mbps 1.7 Mbps
WR6 5.5 Mbps 13.3 Mbps 0.6 Mbps 2.8 Mbps
MK9 5.4 Mbps 23.1 Mbps 0.7 Mbps 9.6 Mbps
CA6 5.2 Mbps 12.5 Mbps 0.7 Mbps 2 Mbps
TD11 5.2 Mbps 10.7 Mbps 0.5 Mbps 2.1 Mbps
IV4 5.1 Mbps 12.1 Mbps 0.6 Mbps 2.8 Mbps
LL20 5 Mbps 12.2 Mbps 0.5 Mbps 1.7 Mbps
OX27 4.9 Mbps 16.9 Mbps 1.2 Mbps 3.8 Mbps
SA44 4.8 Mbps 11.4 Mbps 0.6 Mbps 2 Mbps
AB30 4.8 Mbps 9.9 Mbps 0.7 Mbps 1.8 Mbps
IV54 4.6 Mbps 9.3 Mbps 0.3 Mbps 1.2 Mbps
IV22 4.5 Mbps 8.1 Mbps 0.3 Mbps 1 Mbps
CA5 4.4 Mbps 13.8 Mbps 0.8 Mbps 2.6 Mbps
PA35 4.4 Mbps 12.3 Mbps 0.4 Mbps 1.5 Mbps
LL24 4.2 Mbps 11.3 Mbps 0.7 Mbps 2.4 Mbps
AB53 4.1 Mbps 10.4 Mbps 0.3 Mbps 2.1 Mbps
LL21 4 Mbps 12 Mbps 0.3 Mbps 2.1 Mbps
SA34 3.9 Mbps 9.8 Mbps 0.7 Mbps 1.8 Mbps
PH15 3.9 Mbps 8.4 Mbps 0.3 Mbps 1.3 Mbps
SA48 3.8 Mbps 15.5 Mbps 0.5 Mbps 2.5 Mbps
SA41 3.4 Mbps 19.7 Mbps 0.3 Mbps 5.4 Mbps
NE67 3.2 Mbps 9.1 Mbps 0.3 Mbps 1.7 Mbps
LD6 3 Mbps 6.1 Mbps 0.4 Mbps 0.9 Mbps
SA39 2.7 Mbps 11.5 Mbps 0.3 Mbps 1.6 Mbps

The range of speeds is very wide and the median speeds at the foot of the table look like ADSL speeds from a decade ago and that is perhaps no suprise when SA39 has no ultrafast coverage and only 54.7% of premises with access to a superfast option, some people are clearly buying and testing the superfast option as reflected in the mean figures, but while some people will be on the phone ordering better broadband options the minute a service is available, others take time to spot that a faster option is available and may be put off by some of the upgrade costs, though we should highlight that for people in rural areas on older up to 8 Mbps ADSL only services the monthly price of VDSL2 services can be less so don't just rely on a quote from your existing provider. On some of the other slowest areas, LD6 47.2% superfast coverage, NE67 58.4%, SA41 59.9%, SA48 57.6%, PH15 21.8%.

A number of studies and spreadsheet re-ordering exercises in 2017 have published name and shame tables on broadband speeds, but none have published charts (that we know of) showing how the speeds observed from consumer speed tests correlates to the levels of superfast coverage and with our wealth of consumer speed test data and tracking the path to 95% superfast coverage and beyond that is pretty easy for us.

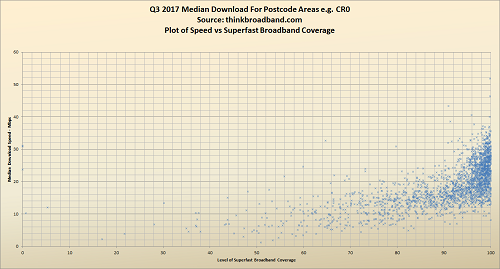

Scatter plot of download speed versus level of superfast broadband coverage
Click image for larger version

Postcode Area Median Download Speeds versus % of Superfast Broadband Coverage

The chart conveys two messages that there is a link between superfast coverage and the median download, this is of course not rocket science but there are some areas such as PO41 with 83.6% superfast coverage recording median download speeds of just 5.6 Mbps suggesting that maybe the area has only just seen coverage increase significantly or take-up is lagging and if public money has been used to boost coverage increasing take-up is important as the higher the take-up the greater the gainshare money available to take coverage ever closer to 100%. The big cluster of postcode areas in 98% to 100% area is a reflection of the superfast roll-outs, and the broad spread of speeds down to the popularity of the ultrafast broadband options.

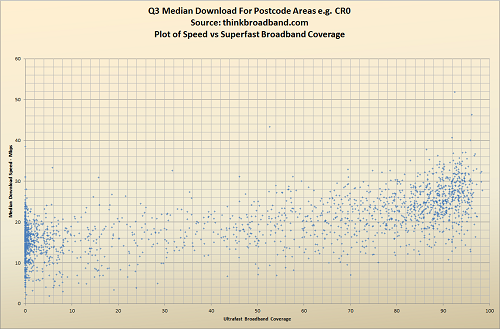

Scatter plot of download speed versus level of ultrafast broadband coverage
Click image for larger version

Postcode Area Median Download Speeds versus % of Ultrafast Broadband Coverage

The chart of ultrafast coverage against download speeds has three main areas, those with no ultrafast broadband coverage on the 0% line with the spread showing the variations from take-up and observations, through to those areas with over 90% ultrafast availability which unsurprisingly are faster. The middle ground shows a slow but steady trend towards higher speeds, what is interesting is that the postcode areas with ultrafast coverage below the 10% mark tend to be those with Openreach GEA-FTTP coverage and one observation we will make is that two years ago it seemed as if more people were buying the faster 200 Mbps and 300 Mbps variants whereas in the last few months the number buying the fastest FTTP options has reduced, we suspect that poor visibility for these faster services on many comparison websites and pressures on utility spending for many, leading to people buying something sufficient for their needs, i.e. with full fibre if you buy a 38 Mbps or 50 Mbps product with distance having no impact you will be able to stream multiple HD streams (assuming the provider does not have massive congestion issues at peak time).

As for the list of over 3,400 postcode areas we have data for, the full list is not available but if you want to see some more information on your specific postcode you can search for your postcode code on our statistics site which updates coverage percentages weekly, area speeds every quarter and the 12 months of history for a postcode and its immediate area updates each month. For the local authority areas, the speed analysis is broken down by technology so you can see the relative speeds of ADSL, FTTC, cable and FTTH services in an area.
